Quick Start - Commercial Charge Card

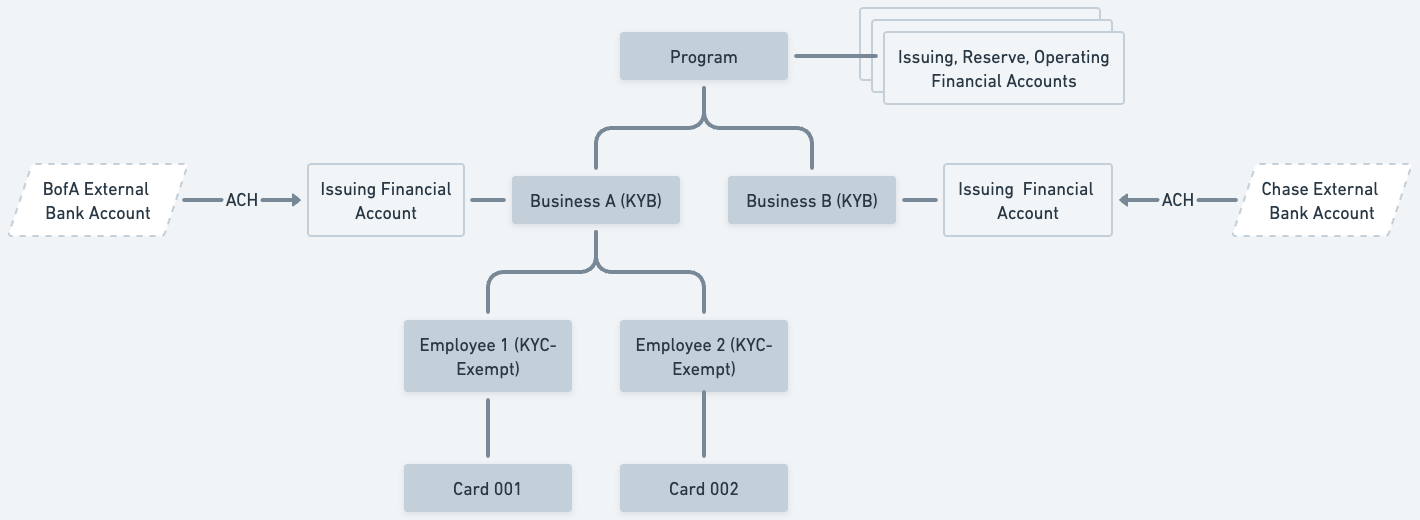

Step 1 - Enroll a business and their employees
When your API key is first provisioned and your program is set up, a default account and your program’s ISSUING, RESERVE, OPERATING financial accounts are created. To add your business clients, you should first create a Business Account Holder, which will generate an associated account and ISSUING financial account shortly thereafter. For the purpose of this guide, let’s assume you are enrolling your business clients' employees as KYC-Exempt Individual Account Holders. Before your program goes live, work with your implementation specialist to understand your specific KYC requirements.
For this guide, assume you are utilizing your own Know Your Business (KYB) process, known as a BYO KYB workflow. For more information on the different KYC and KYB (Know Your Business) processes that Lithic supports, please refer to our guides for Account Holders (Individuals) and Account Holders (Businesses).
Send a POST
request to Create Account Holder to create a Business Account Holder:
curl https://api.lithic.com/v1/account_holders
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"workflow": "KYB_BYO",
"tos_timestamp": "2023-01-13T00:00:00Z",
"business_entity": {
"legal_business_name": "New Coffee Shop",
"government_id": "000003333",
"address": {
"address1": "456 Main Street",
"city": "New York",
"state": "NY",
"postal_code": "10128",
"country": "USA"
},
"phone_numbers": ["+15555555555"]
},
"website_url": "newcoffeeshop.com",
"kyb_passed_timestamp": "2023-01-14T00:00:00Z",
"nature_of_business":"Retail store selling coffee and other food items",
"control_person": {
"first_name": "Johnny",
"last_name": "AppleSeed",
"dob": "1990-06-28",
"phone_number": "+15555555555",
"email": "[email protected]",
"government_id": "000003333",
"address": {
"address1": "123 Main Street",
"postal_code": "10128",
"city": "New York",
"state": "NY",
"country": "USA"
}
},
"beneficial_owner_individuals": [
{
"first_name": "Mary",
"last_name": "AppleSeed",
"dob": "1991-06-28",
"phone_number": "+15555555556",
"email": "[email protected]",
"government_id": "000004444",
"address": {
"address1": "789 Main Street",
"postal_code": "10128",
"city": "New York",
"state": "NY",
"country": "USA"
}
}
]
}
'
Below is a sample response:
{
"account_token": "b68b7424-aa69-4cbc-a946-30d90181b621",
"status": "ACCEPTED",
"status_reasons": [],
"token": "12345678-aa69-4cbc-a946-30d90181b621",
}
At this point, the issuing and operating financial account for the business client is also created. For commercial charge card, only the business client's issuing financial account will be used. You can view this account by sending a GET
request to List Financial Accounts:
curl https://api.lithic.com/v1/financial_accounts?business_account_token=b68b7424-aa69-4cbc-a946-30d90181b621\
-H "Authorization: YOUR_API_KEY"
Below is a sample response:
{
"data": [
{
"token": "12345678-aa69-4cbc-a946-30d90181b621",
"created": "2023-06-10T17:48:48Z",
"updated": "2023-06-10T17:48:48Z",
"type": "ISSUING",
"nickname": "string",
"routing_number": "100000000",
"account_number": "11111234567890",
"is_for_benefit_of": false
},
{
"token": "910c80e8-7010-4f46-b16a-8b0b933807ef",
"created": "2023-06-10T17:48:48Z",
"updated": "2023-06-10T17:48:48Z",
"nickname": "string",
"type": "OPERATING",
"routing_number": "100000000",
"account_number": "11111234567892",
"is_for_benefit_of": false
}
]
}
{
"data": {
"account_token": "8dc88f3e-21ea-4d17-9a1c-00cea1a76cf9",
"status": "ACCEPTED",
"status_reasons": [],
"token": "12345678-aa69-4cbc-a946-30d90181b621",
"business_account_token": "b68b7424-aa69-4cbc-a946-30d90181b621"
}
}
Step 2 - Add and Verify an External Bank Account
You will now add the external bank account that your enrolled business clients will use to pay their charge card bills. This should be a commercial bank account that you have received authorization to ACH debit on a recurring basis. The external bank account should be linked to the business's KYB account. The below sample API request shows how to do this..
Send a POST
request to Create external bank account:
curl https://api.lithic.com/v1/external_bank_accounts \
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"verification_method": "MICRO_DEPOSIT",
"owner_type": "BUSINESS",
"owner": "John Doe LLC",
"type": "CHECKING",
"routing_number": "021000021",
"account_number": "123456789",
"name": "Funding Account",
"country": "US",
"currency": "USD"
"account_token": "b68b7424-aa69-4cbc-a946-30d90181b621"
}
'
Below is a sample response:
{
"token": "a036e6b5-fd0f-49b2-b0c0-45d84214b189",
"type": "CHECKING",
"verification_method": "MICRO_DEPOSIT",
"owner_type": "BUSINESS",
"owner": "John Doe LLC",
"state": "ENABLED",
"verification_state": "PENDING",
"routing_number": "021000021",
"last_four": "6789",
"name": "John Doe Payables",
"currency": "USD",
"country": "US",
"account_token": "b68b7424-aa69-4cbc-a946-30d90181b621",
"created": "2023-06-23T20:01:53Z",
"company_id": null,
Because the External Bank Account object was created with a verification method of MICRO_DEPOSIT
, Lithic will now send two small dollar deposits to the bank account ending in 6789
. Lithic uses your program's operating account to fund those micro deposits. Therefore, you will need to make sure the operating account is funded prior to initiating verification via micro deposit. Your business clients should then see these amounts reflected in this bank account and enter those amounts in your application. You should then send those entered amounts to Lithic to verify the bank account by sending a POST
request to Verify External Bank Account
If you are testing in sandbox, please enter the micro deposit amounts of 19 and 89.
curl https://api.lithic.com/v1/external_bank_accounts/a036e6b5-fd0f-49b2-b0c0-45d84214b189/micro_deposits \
-H 'AUTHORIZATION: YOUR_API_KEY'
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"micro_deposits": [19, 89]
}
'
Below is a sample response. Note that the verification_state
of the external bank account has switched from PENDING
to ENABLED
:
{
"token": "a036e6b5-fd0f-49b2-b0c0-45d84214b189",
"type": "CHECKING",
"verification_method": "MICRO_DEPOSIT",
"owner_type": "BUSINESS",
"owner": "John Doe LLC",
"state": "ENABLED",
"verification_state": "ENABLED",
"routing_number": "021000021",
"last_four": "6789",
"name": "John Doe Payables",
"currency": "USD",
"country": "USA",
"account_token": null,
"created": "2023-06-23T20:01:53Z",
"company_id": null
}
Step 3 - Configure your charge card program
At this point you will work with your implementation specialist to set up the initial credit product configuration. After you have set up the credit configuration for the program, you can then set the credit limit and external bank account for each of your customers. For this guide, lets attach a credit limit of $100,000 and an external bank account for a given account token.
Note: Your implementation specialist will provide you with a credit_product_token for each environment.
Send a POST
request to Credit Configuration for the business client's account you just created:
curl https://api.lithic.com/v1/accounts/b68b7424-aa69-4cbc-a946-30d90181b621/credit_configuration
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"credit_limit": 10000000,
"external_bank_account_token": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"credit_product_token": "2jyR0tDUZK7N7fMxmzMHJOa7bH7"
}
’
Step 4 - Create Individual Account Holders
Next, you will enroll the business's employees and link them to the business using the business_account_token
. Send a POST
request to Create Account Holder:
curl https://api.lithic.com/v1/account_holders
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"workflow": "KYC_EXEMPT",
"kyc_exemption_type": "AUTHORIZED_USER",
"tos_timestamp": "2023-06-11T00:00:00Z",
"individual": {
"first_name": "Johnny",
"last_name": "AppleSeed",
"email": "[email protected]",
"address": {
"address1": "123 Main Street",
"postal_code": "10128",
"city": "New York",
"state":"NY",
"country":"USA"
}
},
business_account_token: "b68b7424-aa69-4cbc-a946-30d90181b621"
}
’
Below is a sample response:
{
"data": {
"account_token": "8dc88f3e-21ea-4d17-9a1c-00cea1a76cf9",
"status": "ACCEPTED",
"status_reasons": [],
"token": "12345678-aa69-4cbc-a946-30d90181b621",
"business_account_token": "b68b7424-aa69-4cbc-a946-30d90181b621"
}
}
Step 5 - Create a card
Create a card for your business client's employee so that they can spend on their company charge card. All card transactions taking place on physical and virtual cards associated with the employee’s account will count against the credit limit of the overall business. Individual employees do not have their own credit limit. Instead, employee spend can be managed with Lithic's spend limits, Auth Rules, and ASA.
Send a POST
request to Create Card to create a virtual card:
curl https://api.lithic.com/v1/cards \
-X POST \
-H "Authorization: YOUR_API_KEY" \
-H "Content-Type: application/json" \
-d '
{
"type": "VIRTUAL",
"memo": "New Card",
"spend_limit": 1000,
"spend_limit_duration": "TRANSACTION",
"state": "OPEN",
"account_token": "8dc88f3e-21ea-4d17-9a1c-00cea1a76cf9" ,
}
'
Below is a sample response:
{
"created": "2021-06-28T22:53:15Z",
"token": "7ef7d65c-9023-4da3-b113-3b8583fd7951",
"last_four": "4142",
"hostname": "",
"memo": "New Card",
"type": "VIRTUAL",
"spend_limit": 1000,
"spend_limit_duration": "MONTHLY",
"state": "OPEN",
"funding": null,
"auth_rule_tokens": [
"6397a416-bac6-464c-9647-b006f3a5f91d"
],
"exp_month": "06",
"exp_year": "2027"
}
Step 6 - Transact
As employees transact with their cards, you can view a list of transactions that have occurred with Financial Transactions. A Financial Transaction tells you the state of a transaction as it moves through its lifecycle and transaction events occur.
Let’s take a closer look at Financial Transactions. Assume the following events have occurred with one of your end-users:
- June 15: $20 was authorized at Merchant ABC
- June 15: $70 was authorized at Merchant XYZ
- June 16: $70 was cleared at Merchant XYZ (i.e., the transaction’s final amount was $70)
Send a GET
request to List Financial Transactions to retrieve all transactions between June 14 and June 16 2023:
curl https://api.lithic.com/v1/financial_accounts/12345678-aa69-4cbc-a946-30d90181b621/financial_transactions?begin=2023-06-14T00%3A00%3A00&end=2023-06-17T00%3A00%3A00 \
-H "Authorization: YOUR_API_KEY"
This should return a response with two results. The first result would be the $20 authorization at Merchant ABC. It has a state of PENDING
and the pending_amount
is the full $20. The settled_amount
remains at $0 until the transaction has been finalized by the merchant.
{
"category": "CARD",
"status": "PENDING",
"result": "APPROVED",
"token": "1234fhjt-aa69-4cbc-a946-30d90181dhf7",
"settled_amount": 0,
"pending_amount": -2000,
"currency": "USD",
"events": [
{
"amount": -2000,
"type": "CARD_AUTHORIZATION",
"result": "APPROVED",
"created": "2023-06-15T17:48:48Z",
"token": "99945678-aa69-4cbc-af4p-30d90181b111"
}
],
"descriptor": "Merchant ABC",
"created": "2023-06-15T17:48:48Z",
"updated": "2023-06-15T17:48:48Z"
}
The second result represents the $70 cleared transaction at Merchant XYZ. This transaction has an updated state of SETTLED
, and the full $70 has been transferred from the pending_amount
to the settled_amount
.
{
"category": "CARD",
"status": "SETTLED",
"result": "APPROVED",
"token": "9b8497cb-6ff7-413e-a5a8-a09c906b2b12",
"pending_amount": 0,
"settled_amount": -7000,
"currency": "USD",
"events": [
{
"amount": -7000,
"type": "AUTHORIZATION",
"result": "APPROVED",
"created": "2023-06-15T18:48:48Z",
"token": "11145678-aa69-4cbc-a946-30d90181cccc"
},
{
"amount": -7000,
"type": "CLEARING",
"result": "APPROVED",
"created": "2023-06-16T17:48:48Z",
"token": "8d4f88f0-16e9-4755-832e-b09f00c587fc"
}
],
"descriptor": "Merchant XYZ",
"created": "2023-06-15T17:48:48Z",
"updated": "2023-06-16T17:48:48Z"
}
For more information on the different states of a transaction, please refer to our Financial Transactions guide. For more details on the card transaction lifecycle, please refer to our Transaction Flow guide.
You may also want to check the balance of the business client's issuing financial account using Get Balances:
curl https://api.lithic.com/v1/financial_accounts/12345678-aa69-4cbc-a946-30d90181b621/balances \
-H "Authorization: YOUR_API_KEY"
Below is a sample response:
{
"data": [
{
"financial_account_type": "ISSUING",
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"currency": "USD",
"available_amount": 9000,
"pending_amount": -2000,
"total_amount": 7000,
"created": "2023-06-10T17:48:48Z",
"updated": "2023-06-13T17:48:48Z",
"last_transaction_token": "9b8497cb-6ff7-413e-a5a8-a09c906b2b12",
"last_transaction_event_token": "8d4f88f0-16e9-4755-832e-b09f00c587fc"
}
],
"has_more": false,
}
The available balance of -$90 indicates $90 of the $100K credit limit has been utilized. The total amount of -$70 indicates the total settled amount that would be repaid via auto-collections
Step 7 - Generate Statements
Because this business client is on a 30-day billing period, 30 days after June 15th, Lithic will close the billing period and generate the data needed for you to create a statement for the business client.
To retrieve the summary details for statements, send a GET
request to List Statements:
curl https://api.lithic.com/v1/financial_accounts/12345678-aa69-4cbc-a946-30d90181b621/statements \
-H "Authorization: YOUR_API_KEY"
Below is a sample response:
{
"token": "2jySUy6WudynALA8hvCiBXYgV3K",
"financial_account_token": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
"statement_start_date": "2023-06-15",
"statement_end_date": "2023-07-14",
"payment_due_date": "2023-07-19",
"days_in_billing_cycle": 30,
"credit_limit": 10000000,
"available_credit": 9993000,
"starting_balance": 0,
"ending_balance": 0,
"amount_due": 7000,
"amount_past_due": 0,
"period_totals": {
"payments": 0,
"purchases": 70000,
"fees": 0,
"credits": 0,
"interest": 0,
"cash_advances": 0,
"balance_transfers": 0
},
"ytd_totals": {
"payments": 0,
"purchases": 70000,
"fees": 0,
"credits": 0,
"interest": 0,
"cash_advances": 0,
"balance_transfers": 0
},
"created": "2023-07-15T17:48:48Z",
"updated": "2023-07-15T17:48:48Z",
"credit_product_token": "string",
"account_standing": {
"state": "STANDARD",
"period_number": 0
}
}
Next, let's retrieve the line item details for the statement. Send a GET
request to List line items for a statement:
curl https://api.lithic.com/v1/financial_accounts/12345678-aa69-4cbc-a946-30d90181b621/statements/81384995-b510-4aef-baaa-66b19dce2848/line_items \
-H "Authorization: YOUR_API_KEY"
Below is a sample response:
{
"data": [
{
"token": "2jySUxGBhsWYrFryssnZdvUWWzz",
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"card_token": "7ef7d65c-9023-4da3-b113-3b8583fd7951",
"financial_transaction_token": "9b8497cb-6ff7-413e-a5a8-a09c906b2b12",
"category": "CARD",
"event_type": "CLEARING",
"settled_date": "2023-06-15",
"descriptor": "Merchant XYZ",
"amount": -7000,
"currency": "USD",
"created": "2023-07-15T17:48:48Z"
}
],
"has_more": true
}
Step 8 - Auto-Collection of Repayment
Five days after the billing period end date the payment for the $70 bill is due. Lithic auto-initiates an ACH debit origination to collect the $70 from the business client's external bank account. To see this ACH debit origination, you can either query the Payments API or the Financial Transactions API.
You can send a GET
request to the Payments API.
curl https://api.lithic.com/v1/payments\
-H 'AUTHORIZATION: YOUR_API_KEY'
Below is a sample response. Note that the total balance for the business client's issuing financial account has decreased to $0, indicating that they have paid their bill. The available balance remains -$70 until the ACH debit has settled:
{
"data": [
{
"category": "ACH",
"status": "PENDING",
"result": "APPROVED",
"method_attributes": {
"sec_code": "CCD",
"return_reason_code": null,
},
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"external_bank_account_token": "a036e6b5-fd0f-49b2-b0c0-45d84214b189",
"direction": "DEBIT",
"source": "LITHIC",
"method": "ACH_NEXT_DAY",
"token": "656346c4-920c-4d8c-b4d1-41b4fab6c8ab",
"settled_amount": 0,
"pending_amount": 7000,
"currency": "USD",
"events": [
{
"amount": 7000,
"type": "ACH_ORIGINATION_PENDING",
"result": "APPROVED",
"detailed_results": ["APPROVED"],
"created": "2023-06-23T22:07:47Z",
"token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
},
{
"amount": 7000,
"type": "ACH_ORIGINATION_PROCESSED",
"result": "APPROVED",
"detailed_results": ["APPROVED"],
"created": "2023-06-23T23:07:47Z",
"token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
}
],
"descriptor": "CHARGE_COLLECTION",
"user_defined_id": null,
"created": "2022-07-19T22:07:47Z",
"updated": "2022-07-19T23:07:47Z",
"balance": {
"financial_account_type": "ISSUING",
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"currency": "USD",
"available_amount": -9000,
"pending_amount": 9000,
"total_amount": 0,
"created": "2022-06-10T17:48:48Z",
"updated": "2022-07-19T23:08:00Z",
"last_transaction_token": "656346c4-920c-4d8c-b4d1-41b4fab6c8ab",
"last_transaction_event_token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
}
}
],
"has_more": true
}
Once the hold period has passed (default 2 business days), the collected repayment will settle and be automatically swept into your program's operating financial account, where it can be used toward future transactions or repayment to debt providers.
If you send a GET
request to the Payments API at this point, you would see the below. Note that the available balance is now $0, indicating that the available credit limit has increased back to $100K:
{
"category": "ACH",
"status": "PENDING",
"result": "APPROVED",
"method_attributes": {
"sec_code": "CCD",
"return_reason_code": null,
},
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"external_bank_account_token": "a036e6b5-fd0f-49b2-b0c0-45d84214b189",
"direction": "DEBIT",
"source": "LITHIC",
"method": "ACH_NEXT_DAY",
"token": "656346c4-920c-4d8c-b4d1-41b4fab6c8ab",
"settled_amount": 0,
"pending_amount": 7000,
"currency": "USD",
"events": [
{
"amount": 7000,
"type": "ACH_ORIGINATION_PENDING",
"result": "APPROVED",
"detailed_results": ["APPROVED"],
"created": "2023-06-23T22:07:47Z",
"token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
},
{
"amount": 7000,
"type": "ACH_ORIGINATION_PROCESSED",
"result": "APPROVED",
"detailed_results": ["APPROVED"],
"created": "2023-06-23T23:07:47Z",
"token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
},
{
"amount": 7000,
"type": "ACH_ORIGINATION_RELEASED",
"result": "APPROVED",
"detailed_results": ["APPROVED"],
"created": "2023-06-27T22:07:47Z",
"token": "2a652ffd-cfa2-53c7-997b-26e7ad579995"
}
],
"descriptor": "CHARGE_COLLECTION",
"user_defined_id": null,
"created": "2023-07-19T22:07:47Z",
"updated": "2023-07-19T23:07:47Z",
"balance": {
"financial_account_type": "ISSUING",
"financial_account_token": "12345678-aa69-4cbc-a946-30d90181b621",
"currency": "USD",
"available_amount": 0,
"pending_amount": 2000,
"total_amount": 0,
"created": "2023-06-10T17:48:48Z",
"updated": "2023-07-19T23:08:00Z",
"last_transaction_token": "656346c4-920c-4d8c-b4d1-41b4fab6c8ab",
"last_transaction_event_token": "3de1c04b-59fb-53d3-a3bb-cd436e1c361d"
}
}
Updated about 1 month ago
